If you need to power a 12V device from a 5V USB source, choosing the right dc plug 5.5*2.1 booster cable is essential. A mismatched connector, insufficient power capacity, or incorrect polarity can prevent your equipment from operating properly. A USB-to-DC5521 booster cable combines a USB connection with a 5.5 × 2.1 mm DC barrel plug and a voltage-boosting function, making it a practical option for compatible low-voltage electronic applications.
Shenzhen JYE Technology Co., LTD manufactures wiring harnesses and connector solutions for different industries. Its USB2.0 with DC5521 5V to 12V booster cable is designed for applications requiring voltage conversion and a compact power connection. Before purchasing, you should check the input and output specifications, current requirements, connector dimensions, and intended operating environment to ensure compatibility with your equipment.

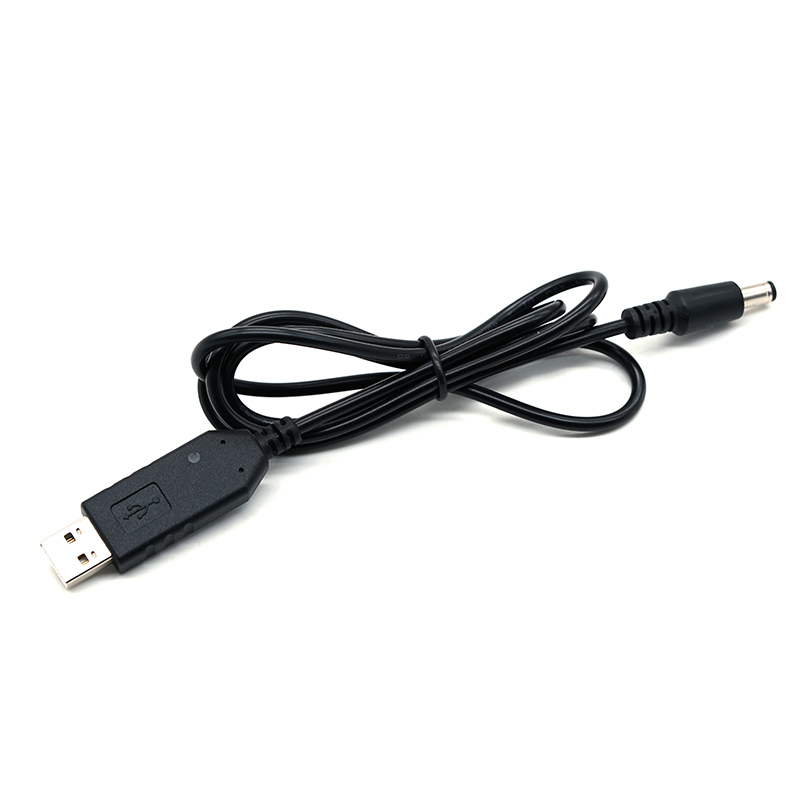

What Is a DC Plug 5.5*2.1 Booster Cable?
A dc plug 5.5*2.1 booster cable uses a DC barrel connector with a nominal outer diameter of 5.5 mm and an inner diameter of 2.1 mm. The USB end connects to a compatible power source, while the DC5521 end supplies power to equipment designed for the corresponding input voltage and connector size.
Unlike a standard USB cable, this product incorporates a voltage-boosting function that converts a 5V input to a nominal 12V output. This makes it suitable for specific devices that require 12V power but can be supplied by a compatible 5V source.
Key Product Specifications
| Parameter | Specification |
|---|---|
| Product name | USB2.0 with DC5521 5V to 12V booster cable |
| Main connector | DC5521, 5.5 × 2.1 mm |
| Input voltage | 5V USB |
| Output voltage | 12V nominal |
| Rated current | 3A, as listed; confirm the applicable side |
| Contact resistance | 30 mΩ maximum |
| Insulation resistance | 1,000 MΩ minimum |
| Withstanding voltage | 12V AC/DC, as listed |
| Operating temperature | -20°C to +105°C |
| Polarity | Positive and negative |
| Wire gauge | 24–20 AWG |
| Listed unit price | USD 1–9.9 |
A 5V input rated at 3A provides a maximum theoretical input power of 15W before conversion losses. Therefore, you should confirm the actual output current and power rating with the supplier rather than assume that the cable delivers 12V at 3A. The listed voltage-withstanding specification should also be verified against the product’s electrical test documentation.
Where Can You Use a USB to DC5521 Booster Cable?
A USB-to-DC5521 booster cable can support different low-voltage power applications when the device specifications match the cable’s capabilities.
Potential applications include:
- Electronic equipment: Power compatible devices that accept 12V DC through a 5.5 × 2.1 mm barrel jack.
- Prototyping and testing: Connect suitable USB power sources to electronic equipment during development or bench testing.
- Compact installations: Reduce the need for a separate 12V adapter when a compatible 5V source can provide sufficient power.
- Customized electronic assemblies: Integrate a suitable booster cable into a larger wiring arrangement with the required connector and wire specifications.
Before connecting your equipment, verify the input voltage, polarity, barrel-jack dimensions, and required power. A physically compatible plug does not necessarily guarantee electrical compatibility.
How to Choose the Right DC Plug 5.5*2.1 Cable
Selecting the correct cable involves more than checking the connector dimensions. Follow these steps to reduce compatibility issues during purchasing and installation.
- Confirm the connector size. Check that your device requires a 5.5 mm outer diameter and 2.1 mm inner diameter DC plug. Some devices use similar-looking 2.5 mm inner-diameter connectors.
- Check the voltage conversion requirements. Verify that the device accepts a regulated 12V DC input and that the cable supports the required conversion.
- Calculate the power demand. Determine the equipment’s operating current and wattage. Make sure the USB source and booster circuit can provide sufficient power without exceeding their ratings.
- Verify polarity and wiring. Confirm the positive and negative connections against the equipment manufacturer’s specifications before applying power.
- Review environmental requirements. If the cable will operate in an industrial environment, check the actual temperature rating, insulation performance, and applicable test documentation.
- Discuss customization. If you need a different wire length, wire gauge, connector configuration, or production quantity, provide these requirements to your cable supplier for feasibility assessment.
Why Work with JYE Technology?
Founded in 2010, Shenzhen JYE Technology Co., LTD focuses on the research, development, and manufacturing of wiring harnesses and connectors. According to the company’s published information, its production facility covers 5,000 square meters and employs more than 100 professionals.
JYE Technology offers capabilities relevant to buyers sourcing customized cable assemblies:
- Custom manufacturing: Support for wiring harnesses and connector assemblies tailored to specified requirements.
- Production equipment: Automated wire cutting, crimping, and laser marking equipment for different manufacturing processes.
- Quality management: The company states that its products comply with RoHS, UL, CE, and REACH requirements. Confirm the specific certification or declaration applicable to the product you intend to purchase.
- Industry experience: Solutions for automotive electronics, industrial automation, consumer electronics, drones, and medical equipment.
For procurement teams, these capabilities provide a starting point for discussing connector compatibility, wire selection, product testing, and production requirements. Ask for product-specific drawings, electrical test results, and compliance documentation before approving a production order.
Frequently Asked Questions
1. What does DC5521 mean?
DC5521 generally refers to a DC barrel plug with a 5.5 mm outer diameter and a 2.1 mm inner diameter. Always verify the connector dimensions and polarity required by your device.
2. Can a 5V USB source power a 12V device?
Yes, if the cable includes a suitable boost converter and the USB source provides enough input power. The device must also accept the resulting 12V output, and its power demand must remain within the cable’s verified output rating.
3. Can JYE Technology provide customized DC power cables?
JYE Technology identifies customized wiring harnesses and connector assemblies as part of its manufacturing services. Contact the company to confirm available DC plug options, wire lengths, specifications, minimum order quantities, and pricing for your project.
Conclusion
Choosing the right dc plug 5.5*2.1 booster cable requires attention to connector dimensions, voltage conversion, polarity, current capacity, and operating conditions. JYE Technology’s USB2.0 with DC5521 5V to 12V booster cable is an option to evaluate when your equipment requires a compatible 12V DC connection from a 5V USB source. Verify the electrical ratings and documentation before placing your order.
Need a customized DC5521 cable? Contact Shenzhen JYE Technology Co., LTD at len@jyetechnology.com or sales01@jyetechnology.com. Share your required cable length, connector specifications, input source, output power, and estimated order quantity to request a product recommendation and quotation.
