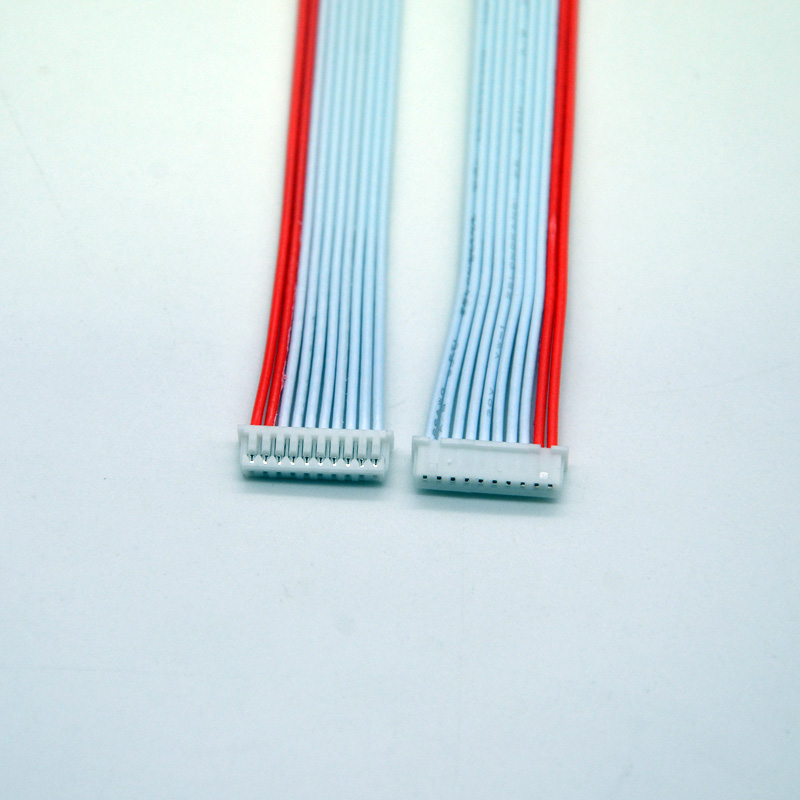

When your equipment needs stable connections in a compact space, choosing the right harness cable can directly affect assembly efficiency and electrical reliability. Loose wiring, incorrect pin configurations, or unsuitable wire gauges can create installation problems and increase production costs. The MX1.25 2–15 pin male wire harness from Shenzhen JYE Technology Co., LTD provides a compact wiring solution with 1A rated current, 32–26AWG wire options, and a -20°C to +105°C operating temperature range. For OEMs, electronics manufacturers, and appliance producers, its flexible pin configurations make it easier to match different internal wiring requirements.

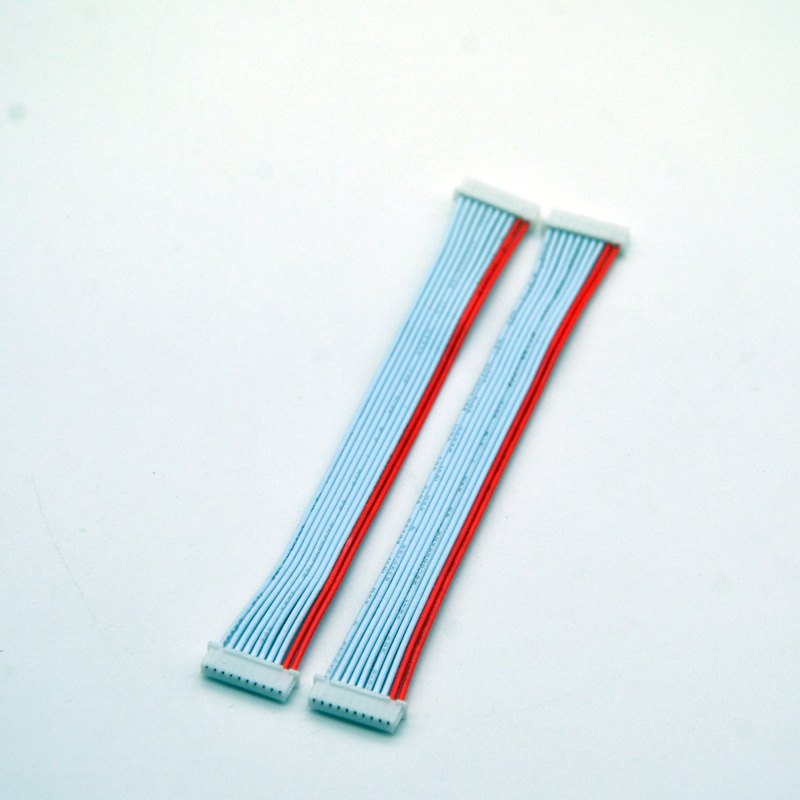

Why Choose an MX1.25 Harness Cable?
An MX1.25 wire harness uses a compact connector format while supporting multiple pin configurations. You can select from 2 to 15 pins, allowing the same product family to serve different circuit layouts without redesigning the entire wiring structure.
The product is designed for applications where space efficiency and organized wiring matter. Its 32–26AWG wire range also gives you flexibility when specifying the cable according to the electrical and mechanical requirements of your equipment.
Key specifications include:
- Product type: MX1.25 male wire harness
- Pin options: 2–15 pins
- Rated current: 1A
- Wire range: 32–26AWG
- Contact resistance: 20MΩ max.
- Insulation resistance: 100MΩ min.
- Withstanding voltage: 200V AC/DC
- Temperature range: -20°C to +105°C
- Price reference: USD 0.10–0.99
These specifications make the MX1.25 harness cable suitable for compact electrical assemblies where controlled wiring and connector compatibility are important.
Harness Cable Manufacturing by JYE
For custom wiring projects, the connector is only one part of the solution. You also need consistent wire preparation, crimping, assembly, and quality control.
Shenzhen JYE Technology Co., LTD was established in 2010 and focuses on wire harness and connector R&D and manufacturing. The company operates a manufacturing facility covering more than 5,000 square meters and employs over 100 professionals. JYE also states that its production system supports automated wire cutting and crimping, laser marking, and other specialized processes.
Its manufacturing capabilities include:
- Automated wire cutting and crimping
- Customized wire harness assembly
- Connector and harness integration
- LVDS cable processing
- BMS harness production
- Laser marking
- Quality inspection throughout production
JYE reports an average daily production capacity of 50,000 lines and a yield rate of ≥99.5%. Its products are also stated to comply with RoHS, UL, CE, and REACH requirements, while its medical-related experience includes solutions aligned with ISO 13485 requirements.
Comparing MX1.25 Harness Cable Options
When selecting a harness cable, you should consider more than the connector type. Pin count, wire gauge, temperature range, electrical requirements, and application environment all influence the final configuration.
| Specification | MX1.25 Male Wire Harness |
|---|---|
| Pin configuration | 2–15 pins |
| Rated current | 1A |
| Wire gauge | 32–26AWG |
| Operating temperature | -20°C to +105°C |
| Withstanding voltage | 200V AC/DC |
| Application focus | Compact wiring assemblies |
| Customization | Pin and wire configuration options |
This configuration is particularly useful when you need a compact connector with multiple circuit options rather than a single fixed pin arrangement.
How to Specify a Custom Harness Cable
Before placing an OEM or bulk order, you can follow these steps to reduce specification errors:
- Define the pin count — Select the required configuration from 2 to 15 pins.
- Confirm wire requirements — Specify the appropriate wire gauge between 32 and 26AWG.
- Check electrical requirements — Confirm the 1A rated current and 200V AC/DC withstanding voltage against your application.
- Review environmental conditions — Make sure the -20°C to +105°C temperature range fits your equipment.
- Confirm assembly details — Provide wire length, terminal requirements, connector orientation, and other drawing specifications.
- Request a sample — Test connector fit, electrical performance, and installation before moving to larger production quantities.
This process helps you match the harness cable to your actual assembly instead of relying only on a generic connector specification.
Where Can You Use an MX1.25 Wire Harness?
Compact wire harnesses can support different electronic and appliance assemblies where multiple wires need to be organized into a consistent connector interface.
Typical application areas include:
- Consumer appliances where internal wiring space is limited
- Consumer electronics requiring compact multi-pin connections
- Industrial equipment with organized internal wiring
- Control systems that require structured cable connections
- Electronic assemblies requiring customized wire lengths and pin configurations
JYE also identifies experience across automotive electronics, drones, medical equipment, and industrial automation. However, you should confirm the exact electrical, mechanical, and certification requirements of your application before selecting the final harness configuration.
FAQ
1. What is an MX1.25 harness cable?
An MX1.25 harness cable combines an MX1.25 connector with pre-assembled wires. This product supports 2–15 pins and 32–26AWG wire options for compact electrical assemblies.
2. Can JYE customize the harness cable?
Yes. JYE identifies customizable wiring harnesses as one of its key services. You can provide requirements such as pin configuration, wire gauge, wire length, connector arrangement, and other assembly specifications for evaluation.
3. What industries does JYE serve?
JYE reports experience across nine major industries, including automotive electronics, drones, medical equipment, and industrial automation. Its product range covers both wire harnesses and connectors.
Conclusion
Choosing the right harness cable requires you to consider pin configuration, wire gauge, electrical ratings, temperature conditions, and assembly requirements together. The MX1.25 2–15 pin male wire harness provides a compact option with 1A rated current, 32–26AWG wires, -20°C to +105°C operation, and multiple pin configurations. With its wire harness manufacturing experience, automated production capabilities, and stated RoHS, UL, CE, and REACH compliance, Shenzhen JYE Technology can support OEM and customized harness requirements.
CTA: If you are developing a new product or replacing an existing wiring assembly, send JYE your connector type, pin count, wire specification, required cable length, and application details. You can request a sample or customized quotation to verify the configuration before bulk production.
