When selecting a wire harness cable assembly, you need to consider more than the connector shape. Pin count, wire gauge, electrical ratings, operating temperature, and installation space all affect whether a cable assembly fits your equipment. Choosing an unsuitable connector or wire specification can lead to connection problems, unnecessary redesign, and additional procurement costs.

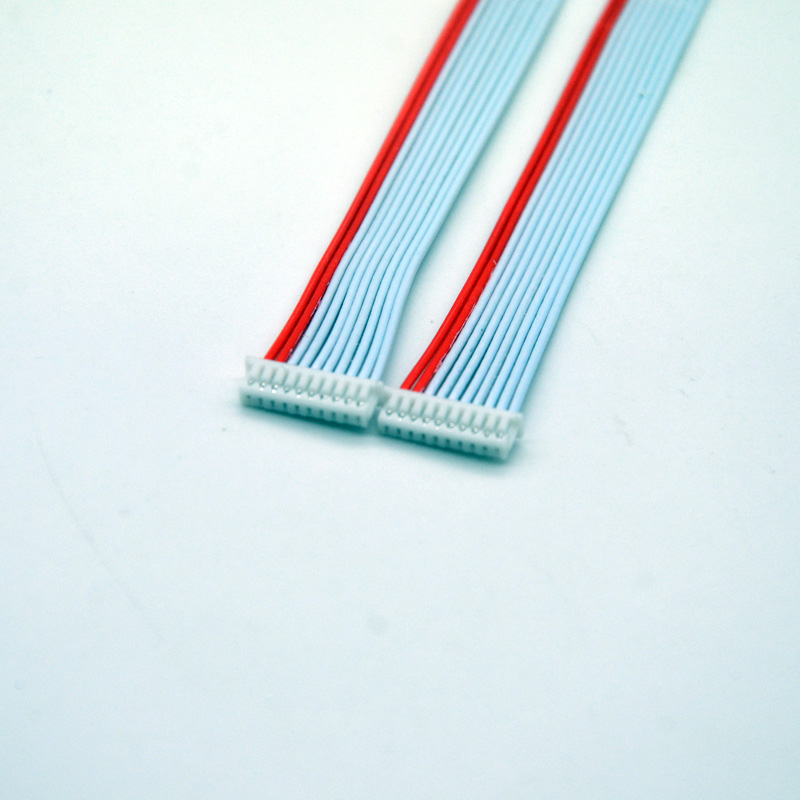

The MX1.25 male wire harness offers a compact connection option for applications that require multiple conductors in a limited space. Available in configurations with different pin counts, this product can be evaluated for appliance electronics and other low-current wiring applications. Shenzhen JYE Technology Co., LTD provides custom wire harness and connector solutions, helping buyers identify suitable configurations based on their equipment requirements.
What Is an MX1.25 Wire Harness Cable Assembly?
An MX1.25 wire harness cable assembly combines a male connector with multiple wires to support electrical connections between compatible components. Its compact connector format can be useful when equipment designers need organized wiring without allocating excessive space to the connection interface.
The listed product supports configurations from 2 to 15 pins, with wire sizes ranging from 32 to 26 AWG. Before ordering, confirm the connector series, mating interface, pin arrangement, wire length, and terminal specifications with your supplier.
Key Product Specifications
| Specification | Listed value |
|---|---|
| Product type | MX1.25 male wire harness |
| Pin configurations | 2–15 pins |
| Wire gauge | 32–26 AWG |
| Rated current | 1 A |
| Contact resistance | 20 mΩ maximum |
| Insulation resistance | 100 MΩ minimum |
| Withstanding voltage | 200 V AC/DC, as listed |
| Operating temperature | -20°C to +105°C |
| Reference price | USD 0.10–0.99 |
These values provide a starting point for product evaluation. Confirm test conditions, connector compatibility, and the applicable voltage rating before incorporating the assembly into your design.
Where Can You Use a Multi-Pin Male Wire Harness?
A multi-pin wire harness can support different equipment designs, depending on the electrical load, environmental conditions, and connector compatibility.
Potential applications include:
- Home appliances: Internal connections between control boards, switches, and compatible electronic modules.
- Consumer electronics: Compact internal wiring where multiple conductors need an organized connection.
- Industrial electronics: Low-current signal or control connections, provided the electrical and environmental requirements match the product specifications.
- Electronic equipment assemblies: Connections between compatible circuit boards and peripheral components.
For example, an appliance manufacturer may need a 6-pin harness to connect a control board to another electronic module. The correct configuration depends on the required signals, pin assignments, available space, and mating connector.
Do not assume that every application is suitable simply because the connector fits. Check current requirements, insulation performance, temperature exposure, and mechanical retention before selecting a product.
How to Select the Right Wire Harness Cable Assembly
When sourcing a custom wire harness cable assembly, use the following steps to reduce specification errors and simplify supplier communication.
- Confirm the connector series. Verify the MX1.25 designation, pitch, mating connector, gender, and terminal compatibility. Do not rely on the product name alone to establish compatibility with a particular connector brand.
- Determine the pin count. Choose a configuration between 2 and 15 pins according to the number of required electrical connections. Provide a pinout drawing if each conductor has a specific function.
- Select the wire gauge. The listed 32–26 AWG range covers different conductor sizes. Evaluate current, voltage drop, cable length, flexibility, and installation conditions before choosing a gauge.
- Review electrical and environmental requirements. Compare the application’s current and voltage with the listed ratings. Confirm the temperature range, insulation requirements, and applicable testing conditions.
- Specify the cable construction. Provide the required wire length, wire colors, terminal arrangement, and any labeling or packaging requirements. Request confirmation of which options the manufacturer can support.
- Request a sample and documentation. Check connector fit, pinout, wire dimensions, and assembly quality before approving a larger order. Request relevant inspection records and test reports where necessary.
Standard vs. Custom Wire Harness Cable Assembly
A standard assembly may suit projects with established dimensions and connector requirements. A custom assembly offers more flexibility when your equipment requires a particular wire length, pin arrangement, or conductor configuration.
| Selection factor | Standard assembly | Custom assembly |
|---|---|---|
| Configuration | Existing specification | Defined by project requirements |
| Wire length | Fixed or limited options | Can be specified for the application |
| Pin arrangement | Predetermined | Can be designed to the approved pinout |
| Development | Usually fewer specification changes | May require drawing review and sample approval |
| Best suited for | Established designs | New products or application-specific wiring |
Custom production does not automatically guarantee a lower price or shorter lead time. Actual cost and delivery depend on the selected materials, order quantity, manufacturing requirements, and inspection process.
Why Consider JYE Technology?
Shenzhen JYE Technology Co., LTD was established in 2010 and specializes in wire harnesses and connectors. According to its company information, JYE operates a 5,000 m² manufacturing facility and employs more than 100 professionals.
Its product categories include wire harnesses, flexible flat cables, IDC flat cables, LVDS cables, data cables, and radio frequency cables. The company also offers customizable wiring harness solutions for different equipment requirements.
JYE states that its products comply with RoHS, UL, CE, and REACH requirements. Because these designations apply differently depending on the product and regulatory context, buyers should request the relevant certificates or declarations for the specific assembly under consideration.
When evaluating a supplier, consider more than the quoted unit price. Review its ability to follow drawings, maintain consistent pin assignments, verify electrical performance, and provide appropriate quality documentation.
FAQ
1. What pin configurations are available for the MX1.25 male wire harness?
The listed product supports 2–15-pin configurations. Confirm the exact pin count, connector arrangement, and mating interface before placing an order.
2. Can I customize the wire length and wire gauge?
JYE Technology offers customizable wire harness solutions. Submit your required cable length, 32–26 AWG selection, pinout, and connector specifications to confirm which options are available for this model.
3. What should I verify before purchasing this wire harness?
Check connector compatibility, rated current, voltage requirements, wire gauge, operating temperature, and pin assignments. You should also confirm the stated electrical test conditions and request a sample when compatibility has not been established.
Conclusion
Choosing the right wire harness cable assembly starts with a clear understanding of your connector interface, pin count, wire gauge, electrical requirements, and operating environment. The MX1.25 male wire harness offers 2–15-pin configurations and a listed 32–26 AWG wire range, making it a candidate for compatible low-current electronic connections. Verify the complete specification before selecting it for production.
CAT
Contact Shenzhen JYE Technology Co., LTD at len@jyetechnology.com or sales01@jyetechnology.com. Share your required pin count, wire length, wire gauge, connector drawing, estimated order quantity, and application details to request a configuration review and quotation.
