When space is limited inside an appliance or compact electronic system, choosing the wrong connector can create assembly problems, unstable connections, and unnecessary wiring bulk. A custom harness connector gives you more control over pin count, wire size, dimensions, and electrical performance. For applications requiring a compact connection, the JYE Technology 51146 ultra-thin connector harness uses a 1.25mm pitch and supports 2–15 pins, making it suitable for space-constrained wiring layouts. The product supports 32–26AWG wires, a rated current of 1A, and an operating temperature range of -20°C to +105°C. If you need a connector harness that fits a defined PCB or appliance wiring layout, these specifications provide a practical starting point for evaluation.
Why Choose a Custom Harness Connector?
A standard connector may fit electrically but still create mechanical or assembly issues. You may need a specific wire length, pin configuration, conductor size, or compact housing to match your equipment.
With a custom harness connector, you can define the cable assembly around your actual application instead of redesigning the equipment around an off-the-shelf cable.

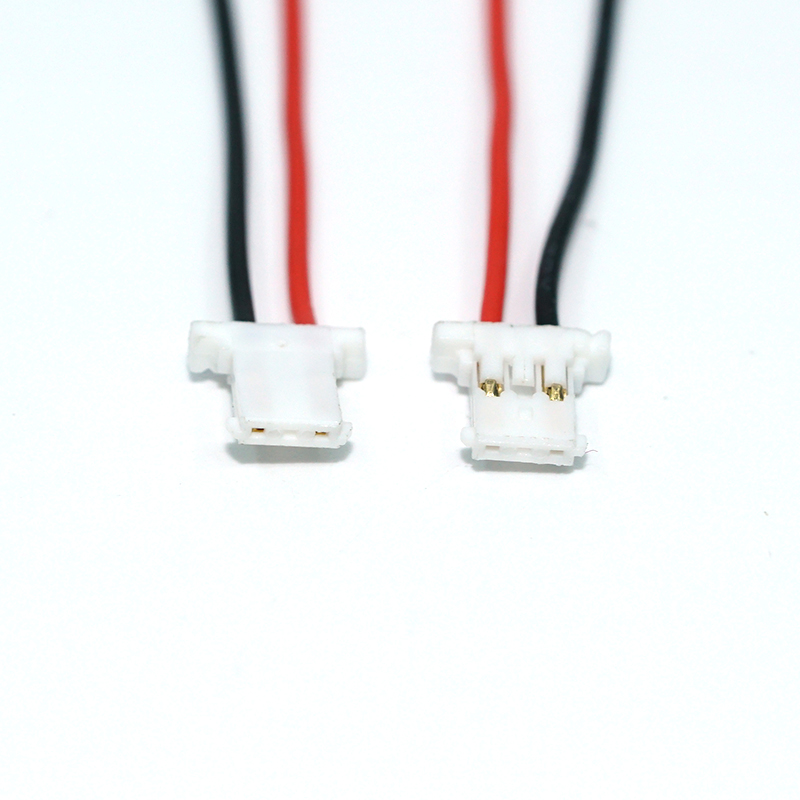

For the 51146 connector harness, key specifications include:
- Pitch: 1.25mm
- Pin options: 2–15 pins
- Rated current: 1A
- Contact resistance: ≤20mΩ
- Insulation resistance: ≥100MΩ
- Withstanding voltage: 200V AC/DC
- Wire range: 32–26AWG
- Temperature range: -20°C to +105°C
- Unit price: USD 0.10–0.99
This combination is particularly useful when you need a compact wiring solution without moving to a larger connector format.
1.25mm Pitch Ultra-Thin Connector Harness Applications
A 1.25mm pitch connector harness can help you manage wiring where PCB and enclosure space is restricted. The compact pitch allows multiple contacts to be arranged within a relatively small connection area.
For appliance and electronic equipment manufacturers, common application considerations include:
Compact Appliance Wiring
The product is listed under JYE Technology’s Appliance Harness and Wire Harness categories. You can use this type of harness where internal space is limited and the wiring assembly needs to remain organized.
Potential applications include:
- Household appliance control boards
- Compact electronic modules
- Display and control assemblies
- Small sensor connections
- Internal PCB wiring
- Space-constrained electronic equipment
The actual suitability depends on your equipment’s current, voltage, temperature, mechanical, and connector interface requirements.
Custom Harness Connector vs. Standard Connector Harness
Before selecting a connector assembly, you should compare the flexibility offered by customization with the limitations of a fixed connector.
| Requirement | Standard Connector Harness | Custom Harness Connector |
|---|---|---|
| Pin configuration | Fixed options | 2–15 pins available |
| Wire gauge | Limited combinations | 32–26AWG supported |
| Cable length | Standard sizes | Can be specified for application |
| Space optimization | Depends on existing design | Designed around your layout |
| Appliance integration | May require adaptation | Can be matched to wiring requirements |
| OEM requirements | Limited flexibility | Better suited to customized assemblies |
For OEM projects, this difference can reduce unnecessary adapters, excess cable length, and manual modification during assembly.
How to Specify Your Custom Connector Harness
You can make the sourcing process more efficient by providing the technical requirements before requesting a quotation.
- Confirm the pitch and pin count.
Identify whether your design requires the 1.25mm pitch and select the required configuration from 2 to 15 pins. - Select the wire specification.
Confirm the required conductor size between 32AWG and 26AWG based on current, space, and assembly requirements. - Define electrical requirements.
Check the 1A rated current, ≤20mΩ contact resistance, ≥100MΩ insulation resistance, and 200V AC/DC withstand voltage against your system requirements. - Confirm environmental conditions.
Make sure the -20°C to +105°C temperature range fits the equipment’s operating environment. - Provide mechanical and assembly details.
Share cable length, connector orientation, terminal requirements, and installation constraints with your supplier. - Request samples before mass production.
Test the harness in your actual assembly to verify fit, electrical performance, and installation efficiency.
Why Work With JYE Technology?
Shenzhen JYE Technology Co., LTD has specialized in custom wire harnesses and connectors since 2010. The company operates a 5,000m² manufacturing facility with 100+ professionals and focuses on customized wiring solutions for different equipment requirements.
JYE Technology also reports an average daily production capacity of 50,000 lines with a yield rate of ≥99.5%. Its automated manufacturing capabilities include wire cutting, crimping, and laser marking, while specialized production supports applications such as LVDS lines and BMS harnesses.
Quality requirements are also supported through compliance with RoHS, UL, CE, and REACH standards. JYE Technology serves customers across automotive electronics, consumer electronics, industrial automation, medical equipment, and drone-related applications.
FAQ
1. What pin configurations are available?
The 51146 connector harness supports 2 to 15 pins, allowing you to select a configuration based on your wiring layout.
2. What wire sizes can this connector harness use?
The specified wire range is 32–26AWG. You should select the appropriate wire size according to your electrical and mechanical requirements.
3. Is the 51146 suitable for appliance wiring?
It is listed within JYE Technology’s Appliance Harness category and is designed as a compact connector harness. You should verify the electrical, temperature, mechanical, and interface requirements of your specific appliance before production.
Conclusion
If your equipment requires a compact connection with flexible pin and wire configurations, the 51146 custom harness connector provides a practical option. Its 1.25mm pitch, 2–15 pin configurations, 32–26AWG wire range, 1A rated current, and -20°C to +105°C operating range make it suitable for evaluating space-constrained appliance and electronic wiring applications. With custom wire harness manufacturing experience, 5,000m² of production space, 100+ professionals, and RoHS, UL, CE, and REACH compliance, Shenzhen JYE Technology Co., LTD can support OEM and customized connector harness requirements.
