Choosing the right connector 2 pin can be difficult when you need stable electrical performance, compact wiring, and consistent assembly quality. A poorly matched connector or wire harness can increase contact resistance, create installation problems, and cause failures during long-term operation. For compact electronic equipment, you need more than a standard connector—you need a wiring solution matched to your voltage, current, wire size, and installation environment. The JST SH1.0 2PINS wire harness from Shenzhen JYE Technology is designed for applications that require compact connections, flexible pin configurations, and controlled manufacturing quality.
Why Choose a Connector 2 Pin JST SH1.0 Harness?

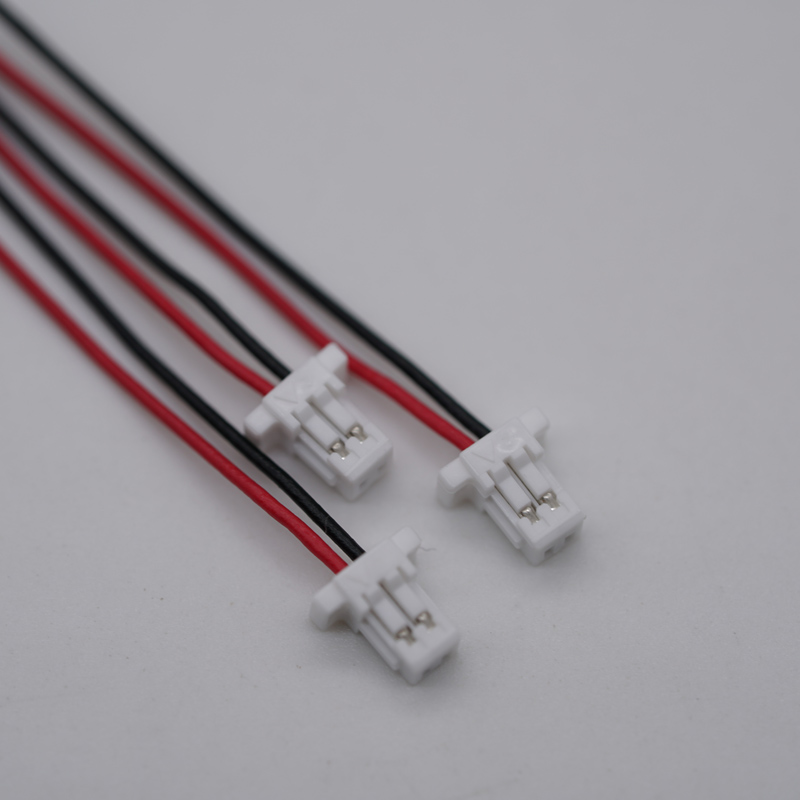

A JST SH1.0 2 pin wire harness provides a compact connection solution for electronic and appliance applications where PCB space is limited. The harness uses 32–28AWG wire and supports configurations from 2 to 16 pins, allowing you to select a suitable assembly according to your circuit design.
The standard specifications include:
- Rated current: 1A
- Contact resistance: 30MΩ maximum
- Insulation resistance: 1000MΩ minimum
- Withstanding voltage: 100V AC/DC
- Operating temperature: -20°C to +105°C
- Wire range: 32–28AWG
- Available pin configurations: 2–16 pins
- Reference unit price: USD 0.25–0.99
These specifications make the harness suitable for compact electronic assemblies where reliable signal or low-current power connections are required.
Connector 2 Pin Applications in Real-World Equipment
You can use a connector 2 pin wire harness when your equipment requires a simple two-wire connection without adding unnecessary wiring complexity. The compact JST SH1.0 format can be integrated into different electronic assemblies and appliance harness systems.
Typical application scenarios include:
- Consumer and household electronic equipment
- Compact control boards
- Sensors and small electronic modules
- Internal appliance wiring
- Industrial electronic assemblies
- Automotive electronic subassemblies
- Drone and electronic control systems
- Medical equipment wiring applications
For example, a compact control board may need a two-wire connection between a sensor and its controller. Using a pre-assembled JST SH1.0 harness can simplify installation and reduce the need for manual wire termination during assembly.
Connector 2 Pin Specifications Compared With Other Harness Options
Before selecting a harness, you should consider current, wire gauge, pin count, insulation performance, and environmental conditions. The following comparison helps you determine whether this compact connector format fits your application.
| Specification | JST SH1.0 2 Pin Harness | Larger Wire Harness | Custom Multi-Pin Harness |
|---|---|---|---|
| Pin configuration | 2–16 pins | Application dependent | Application dependent |
| Wire size | 32–28AWG | Usually larger | Customized |
| Rated current | 1A | Application dependent | Customized |
| Withstanding voltage | 100V AC/DC | Application dependent | Customized |
| Temperature range | -20°C to +105°C | Application dependent | Customized |
| Main advantage | Compact wiring | Higher-power applications | Complex connections |
If your application requires higher current or larger conductors, you should evaluate a different connector and cable structure instead of selecting a compact connector 2 pin only because of its small size.
How JYE Technology Supports Custom Wire Harnesses
Shenzhen JYE Technology focuses on connector wiring harness manufacturing and customized cable assemblies. The company operates a manufacturing facility covering more than 5,000 square meters and employs more than 100 professionals.
Its manufacturing capabilities include automated wire cutting and crimping, laser marking, and production processes for specialized assemblies such as LVDS lines and BMS harnesses. JYE reports an average daily production capacity of 50,000 lines with a stated yield rate of ≥99.5%.
For international projects, JYE also highlights its supply-chain location in Shenzhen and reports a delivery cycle approximately 30% shorter than the industry average. This can be useful when you need repeat orders, customized cable lengths, or coordinated production schedules.
Quality and Compliance Considerations
When you purchase a JST connector 2 pin harness for commercial equipment, material and process control matter as much as connector selection. JYE Technology states that its products comply with international requirements including:
- RoHS
- UL
- CE
- REACH
The company also serves industries including automotive electronics, industrial automation, consumer electronics, drones, and medical equipment. For medical-related projects, JYE states that its solutions support requirements associated with ISO 13485.
How to Order a Custom JST SH1.0 Wire Harness
If the standard configuration does not exactly match your equipment, you can provide the following information to the manufacturer:
- Confirm the connector: Specify JST SH1.0 or your required connector series.
- Confirm pin count: Select 2 pins or another configuration from the required range.
- Specify wire: Provide the required wire gauge, such as 32–28AWG.
- Define electrical requirements: Confirm current, voltage, insulation, and temperature requirements.
- Provide assembly details: Specify wire length, terminal requirements, and connector orientation.
- Request samples: Test the assembly in your actual equipment before moving to mass production.
This approach helps you avoid mismatched connectors and unnecessary redesign work during production.
FAQ
1. What is a connector 2 pin wire harness?
A connector 2 pin wire harness is a pre-assembled cable containing two electrical connections and corresponding terminals or connectors. It is commonly used for compact electronic and appliance wiring.
2. What wire size does the JST SH1.0 harness support?
The listed JST SH1.0 wire harness supports 32–28AWG wire. You should select the actual wire size according to your current, voltage, mechanical, and installation requirements.
3. Can JYE Technology customize the wire harness?
Yes. JYE Technology focuses on customized wiring harness solutions. You can discuss connector type, pin count, wire gauge, cable length, terminal configuration, and other assembly requirements with the manufacturer.
Conclusion
A compact harness can simplify your product assembly when space, wiring consistency, and connection reliability are important. The JST SH1.0 configuration supports 2–16 pin options, 32–28AWG wires, a 1A rated current, and an operating temperature range of -20°C to +105°C. With its manufacturing facilities, automated production capabilities, quality controls, and international compliance experience, Shenzhen JYE Technology can support both standard and customized harness requirements. If you are sourcing a connector 2 pin solution for your electronic or appliance project, provide your connector, wire, pin, length, and electrical specifications to JYE Technology for a suitable harness configuration.
