Ribbon Cables: How to Choose the Right IDC Flat Cable

When your wiring system needs multiple conductors in a compact layout, ribbon cables can simplify assembly while keeping connections organized. However, choosing the wrong pitch, pin count, wire gauge, or electrical specification can create compatibility and reliability problems. You need a cable that matches your connector, current requirements, operating temperature, and installation environment. JYE Technology provides IDC 2.54mm color flat cable solutions with 8–64 pins and 26AWG or 28AWG wires, giving you practical options for electronic equipment, control systems, and customized wiring applications.

What Are Ribbon Cables?

Ribbon cables use multiple parallel conductors arranged in a flat, organized structure. This design makes them suitable when you need several electrical connections without managing individual wires separately.

For IDC applications, the 2.54mm pitch provides compatibility with many commonly used IDC connectors and headers. The color-coded flat construction can also help you identify conductors during assembly, testing, and maintenance.

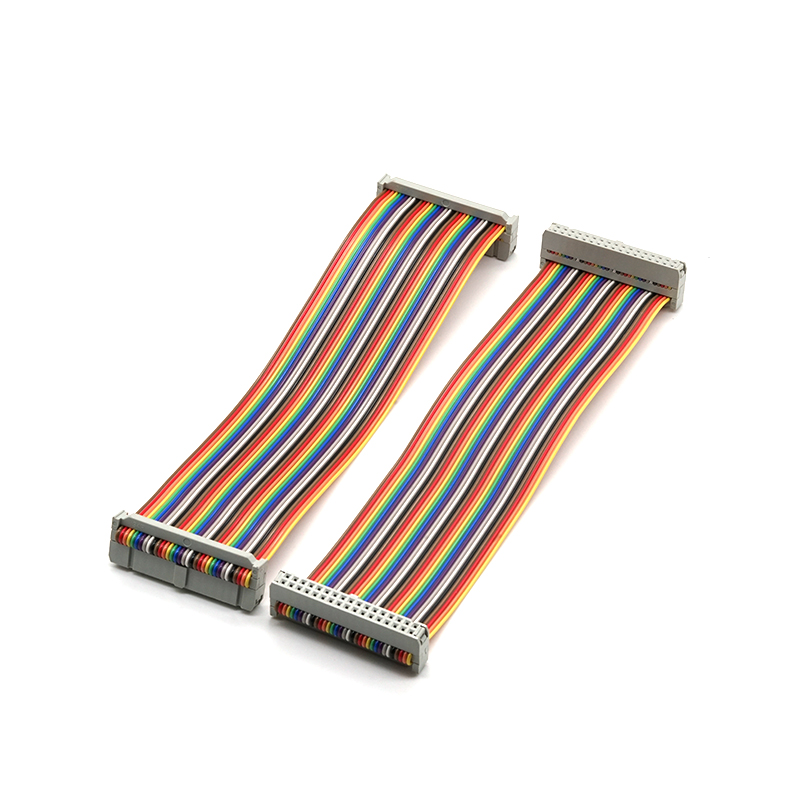

JYE Technology’s IDC 2.54mm color flat cable supports:

• 8–64 pins for different connection requirements
• 26AWG or 28AWG wire options
• 3A rated current
• 20MΩ maximum contact resistance
• 1000MΩ minimum insulation resistance
• 500V AC withstand voltage
• -20°C to +105°C operating temperature range

These specifications make the cable suitable for applications where stable multi-pin connections and organized wiring are important.

2.54mm Ribbon Cables for Different Applications

The right cable depends on your connector configuration and equipment requirements. Before ordering, you should confirm the pitch, pin count, wire gauge, cable length, and connector type.

Where Can You Use IDC Ribbon Cables?

You can consider this type of flat cable for:

• Industrial control and automation equipment
• Consumer electronics
• Internal electronic device connections
• PCB and control-board wiring
• Testing and measurement equipment
• Customized wiring harness assemblies
• Equipment requiring multi-conductor connections

JYE Technology has experience serving industries including automotive electronics, industrial automation, drones, consumer electronics, and medical equipment. Its manufacturing capabilities include automated wire cutting and crimping, laser marking, and customized harness production.

Ribbon Cable Specifications Compared

Different ribbon cable configurations can affect your assembly requirements. The following comparison helps you evaluate common options from the available JYE product specifications.

The wide pin-count range allows you to select a configuration according to your board or connector layout. For example, an 8-pin cable can suit a smaller connection, while higher-count versions can support more complex multi-line interfaces.

How to Select the Right Ribbon Cable

You can reduce compatibility issues by checking the cable requirements before placing an order.

1. Confirm the connector pitch
   Make sure your connector uses the required 2.54mm pitch.
2. Choose the pin count
   Match the cable to your connection layout, with available options from 8 to 64 pins.
3. Select the wire gauge
   Choose 26AWG or 28AWG according to your electrical and mechanical requirements.
4. Check electrical specifications
   Verify the 3A rated current, insulation resistance, contact resistance, and 500V AC withstand voltage.
5. Confirm the operating environment
   Check whether the -20°C to +105°C temperature range fits your application.
6. Discuss customization
   If standard specifications do not match your assembly, ask JYE Technology about customized cable and wiring harness requirements.

Why Choose JYE Technology for Ribbon Cables?

Shenzhen JYE Technology Co., LTD was founded in 2010 and focuses on connector and wiring harness manufacturing. The company operates a manufacturing facility covering more than 5,000 square meters and employs over 100 professionals.

JYE Technology also emphasizes customized wiring solutions. Its production capabilities include automated wire cutting and crimping equipment, laser marking systems, and processes for specialized products such as LVDS lines and BMS harnesses.

Quality control is another important part of the supplier evaluation process. JYE states that its products comply with international requirements including RoHS, UL, CE, and REACH, while its medical-equipment experience includes products designed around ISO 13485 requirements.

For customers requiring international support, JYE Technology also reports service outlets in North America and Europe, supporting technical communication and response across different markets.

FAQ

1. What is the pitch of JYE’s IDC ribbon cable?

The product uses a 2.54mm pitch, making it suitable for compatible IDC connectors and header systems.

2. What pin counts are available?

The IDC 2.54mm color flat cable is available from 8 pins to 64 pins, allowing you to select a configuration based on your connection requirements.

3. Can JYE customize ribbon cables?

Yes. JYE Technology focuses on customized wiring harness and connector solutions. You can provide your required pin count, wire gauge, length, connector configuration, and application requirements for evaluation.

Conclusion

Choosing the right ribbon cables requires more than comparing price. You should verify the 2.54mm pitch, pin count, wire gauge, electrical ratings, temperature range, and connector compatibility before placing an order. With 8–64 pin options, 26AWG and 28AWG wires, and a -20°C to +105°C temperature range, JYE Technology’s IDC flat cable provides a practical option for multi-conductor electronic wiring applications.
