When you need reliable board-to-board wiring, choosing the right IDC cable affects connection stability, assembly efficiency, and long-term performance. A cable with the wrong pitch, pin count, wire gauge, or electrical rating can create compatibility problems and increase rework costs. For applications using standard 2.54mm interfaces, a properly specified IDC flat cable provides a practical solution for organized, high-density internal wiring. Shenzhen JYE Technology Co., LTD manufactures customized wiring harnesses and connector solutions, giving you options for different equipment and assembly requirements.
What Is an IDC Cable?
An IDC cable is a flat ribbon cable designed for use with insulation displacement connectors (IDCs). Its parallel conductors maintain a fixed spacing, which simplifies alignment and supports efficient multi-pin connections.

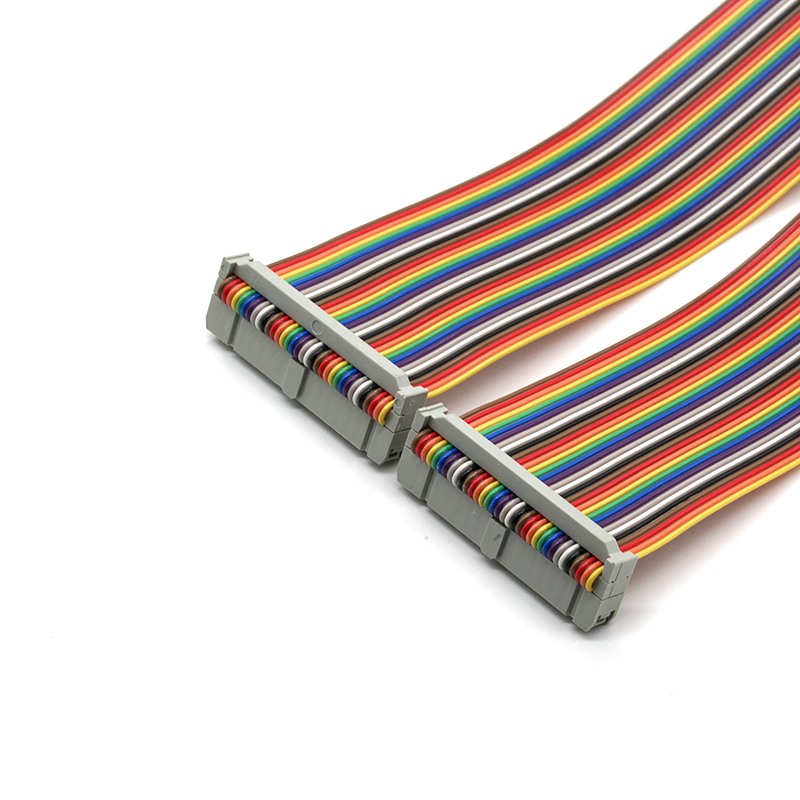

For your application, the 2.54mm IDC cable is particularly useful when equipment uses a standard 2.54mm pitch interface. JYE Technology offers a rainbow-colored flat cable configuration with 8–64 pins, helping you select a suitable cable according to the connector and PCB layout.
Key specifications include:
- Pitch: 2.54mm
- Pin options: 8–64 pins
- Wire gauge: 26 AWG or 28 AWG
- Rated current: 3A
- Contact resistance: ≤20MΩ
- Insulation resistance: ≥1000MΩ
- Withstanding voltage: 500V AC
- Temperature range: -20°C to +105°C
- Product type: Color flat cable / rainbow ribbon cable
These specifications make the cable suitable for internal electronic equipment, control systems, industrial devices, and other applications that require compact multi-conductor connections.
Why Choose a 2.54mm IDC Flat Cable?
The cable pitch should match your connector before you place an order. A 2.54mm pitch cable works with compatible 2.54mm IDC connectors and helps maintain consistent conductor spacing throughout the assembly.
A 2.54mm IDC flat cable can also simplify wiring because multiple conductors remain aligned in one flat structure. This is useful when you need to route several signal or power connections without managing individual wires separately.
The rainbow color arrangement provides another practical advantage. Different conductor colors can help you identify circuits during assembly, inspection, troubleshooting, and maintenance.
IDC Cable vs. Other Cable Types
| Cable Type | Typical Feature | Suitable Use |
|---|---|---|
| 2.54mm IDC Cable | Flat multi-conductor structure | PCB and internal equipment connections |
| FFC | Thin, flexible flat construction | Compact electronic assemblies |
| LVDS Cable | Designed for differential signal transmission | Displays and high-speed signal applications |
| Wire Harness | Individually routed wires with connectors | Customized equipment and complex wiring |
You should therefore select the cable according to the connector interface, electrical requirements, routing space, and application rather than treating all flat cables as interchangeable.
How to Select the Right IDC Cable
Before ordering an IDC cable, follow these steps:
- Confirm the connector pitch.
Check that your connector uses a 2.54mm pitch if you plan to use this cable specification. - Determine the required pin count.
JYE Technology supports configurations from 8 to 64 pins, allowing you to match the cable to your PCB or connector layout. - Select the wire gauge.
Choose between 26 AWG and 28 AWG according to your current, space, and assembly requirements. - Check electrical requirements.
Compare your application requirements with the 3A rated current, 500V AC withstand voltage, and insulation resistance of at least 1000MΩ. - Verify the operating environment.
For equipment exposed to temperature changes, check whether the -20°C to +105°C range meets your application conditions. - Confirm customization requirements.
If you need specific lengths, connector configurations, pin counts, or assembly details, provide your drawings or specifications before production.
Where Can You Use an IDC Ribbon Cable?
A rainbow ribbon cable can help you organize multi-conductor connections in applications where space and wiring consistency matter.
Common scenarios include:
- Industrial automation equipment for internal control and signal wiring
- Consumer electronics requiring organized PCB connections
- Electronic control systems with multiple parallel conductors
- Test and measurement equipment requiring repeatable cable assemblies
- Embedded equipment where compact internal wiring simplifies assembly and maintenance
For customized projects, you can also combine the flat cable with compatible connector assemblies according to your equipment design.
Why Work With JYE Technology?
Shenzhen JYE Technology Co., LTD has specialized in wire harnesses and connectors since 2010. Its manufacturing operation covers approximately 5,000m² and employs more than 100 professionals, supporting custom cable and connector production.
JYE Technology also highlights automated wire cutting and crimping equipment and laser marking capabilities. Its broader manufacturing experience covers automotive electronics, drones, medical equipment, industrial automation, and consumer electronics.
For quality and compliance requirements, the company states that its products comply with RoHS, UL, CE, and REACH requirements. This provides useful documentation support when you are sourcing cable assemblies for international projects.
FAQ
1. What is a 2.54mm IDC cable?
A 2.54mm IDC cable is a multi-conductor flat ribbon cable designed for compatible 2.54mm-pitch IDC connector systems. It keeps the conductors aligned for efficient multi-pin connections.
2. How many pins are available for this IDC cable?
This product supports 8 to 64 pins. You should select the pin count according to your connector and PCB requirements.
3. Can JYE Technology customize IDC cables?
Yes. JYE Technology provides customized cable and wiring harness solutions. You can provide requirements such as cable length, pin count, wire gauge, connector configuration, and application conditions for evaluation.
Conclusion
Selecting the right IDC cable starts with matching the connector pitch, pin count, wire gauge, electrical ratings, and operating environment to your actual application. JYE Technology 2.54mm rainbow ribbon cable supports 8–64 pins, 26/28 AWG wire, 3A rated current, and -20°C to +105°C operation, making it a practical option for a range of electronic and industrial connection applications. With custom manufacturing capabilities and RoHS, UL, CE, and REACH compliance, JYE Technology can support both standard sourcing and project-specific cable requirements.
