In UAV engineering, signal loss rarely comes from software. It usually starts at the connector. Vibration, EMI noise, and micro-contact instability can silently break flight controller communication. This is why selecting a reliable drone wiring harness manufacturer directly impacts flight safety and system stability.
Shenzhen JYE Technology specializes in precision-engineered JST GH 1.25mm wiring systems for UAV and industrial electronics. As a professional drone wiring harness manufacturer, we focus on vibration-resistant connectivity, stable RSSI transmission, and repeatable manufacturing accuracy for flight-critical applications.
Unlike generic cable suppliers, JYE builds harness systems designed specifically for UAV flight controller integration, where mechanical locking and signal integrity are non-negotiable.

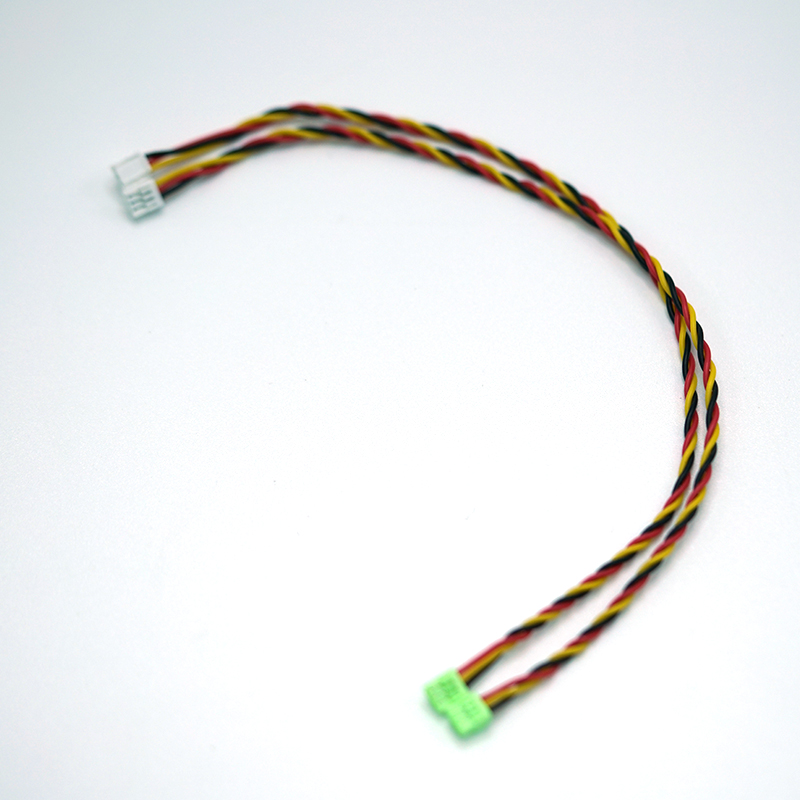

JST GH 1.25mm 4-Pin Harness for UAV Flight Controller Systems
Engineered for Vibration and Signal Stability
The JST GH 1.25mm 4-pin connector system (GHR-04V-S) is widely used in UAV flight controllers due to its compact size and mechanical stability.
Its key advantage is the side-locking mechanism, which prevents accidental disconnection during:
- High-frequency drone vibration
- Rapid acceleration or deceleration
- Outdoor turbulence conditions
Electrical specifications:
- Rated current: 1A
- Contact resistance: ≤ 20mΩ
- Insulation resistance: ≥ 100MΩ
- Withstanding voltage: 200V AC/DC
- Temperature range: -20°C to +105°C
Beyond electrical performance, the mechanical locking structure is what makes this connector suitable for UAV flight-critical wiring.
Custom Drone Cable Assembly Factory for UAV OEM Projects
As a scalable custom drone cable assembly factory, Shenzhen JYE Technology supports full OEM integration for UAV manufacturers and flight controller developers.
We specialize in UAV Flight Controller wiring assembly, including:
- JST GH 1.25mm 4-pin harness systems
- RSSI signal wiring for telemetry modules
- Power + signal hybrid harness design
- Lightweight drone internal wiring solutions
Custom options include:
- Pin configuration (fixed 4-pin or extended 2–15 pin platforms)
- Wire gauge: 32–26 AWG
- Insulation: Silicone / Teflon / PVC / XLPE
- Length and color customization
- Engineering drawing support (free DFM review)
Technical Comparison – Standard Cable vs JYE UAV Harness
| Feature | Generic Cable Supplier | JYE Drone Wiring Harness Manufacturer |
|---|---|---|
| Connector Stability | Basic friction fit | JST GH side-locking design |
| Vibration Resistance | Low | High (UAV optimized) |
| EMI Performance | Uncontrolled | Optimized routing structure |
| Application Focus | Consumer electronics | UAV Flight Controller systems |
| OEM Support | Limited | Full custom engineering support |
This gap is exactly why UAV manufacturers migrate from generic cables to engineered harness systems.
Manufacturing Process for UAV Wiring Harness Systems
Every JST GH 1.25mm harness follows a controlled engineering workflow:
Production steps:
- UAV system requirement analysis (FC / ESC / telemetry)
- Connector selection: JST GH 4-pin architecture validation
- CAD wiring diagram & DFM review
- Automated cutting & precision crimping
- Electrical + mechanical stress testing
- Vibration simulation sampling
- Final inspection (≥99.5% yield standard)
This process ensures each harness performs consistently under UAV operating stress conditions.
Industry Applications of JST GH Drone Wiring Harness
The JST GH 1.25mm 4-pin harness is widely deployed in:
- UAV flight controller systems (FC wiring)
- GPS and telemetry signal modules
- FPV racing drone internal wiring
- Industrial inspection drones
- Lightweight robotics control systems
These applications require more than connectivity—they require mechanical stability under continuous vibration.
FAQ
Why is JST GH 1.25mm widely used in drones?
Because its compact pitch and side-locking structure reduce vibration-induced disconnection in UAV systems.
Can you provide custom UAV flight controller wiring assemblies?
Yes. We support full OEM/ODM customization for UAV flight control systems.
CTA
If your UAV design depends on stable flight controller communication, the wiring architecture cannot be an afterthought. A properly engineered drone wiring harness manufacturer ensures signal integrity under real flight conditions.
Shenzhen JYE Technology provides JST GH 1.25mm 4-pin UAV harness solutions with full OEM customization, engineering support, and production scalability.
Request:
- Free UAV wiring design review
- Custom JST GH 4-pin harness samples
- OEM flight controller cable assembly solutions
Conclusion
A UAV system is only as reliable as its weakest connection point. Choosing a precision-focused drone wiring harness manufacturer ensures vibration-resistant, EMI-stable, and flight-ready performance. Shenzhen JYE Technology delivers JST GH 1.25mm 4-pin harness solutions engineered for real UAV operating environments, not just lab conditions.
